„The true universal integrated amp, period“.
This is the design aim of the new EX-M1+. The answer for many of our customers who were looking for an End Game integrated amp with preamp output, home theater bypass input, fully dimmable display.
We hear you, guys. Now you have it!
THE GOOD OF EX-M1, PRESERVED

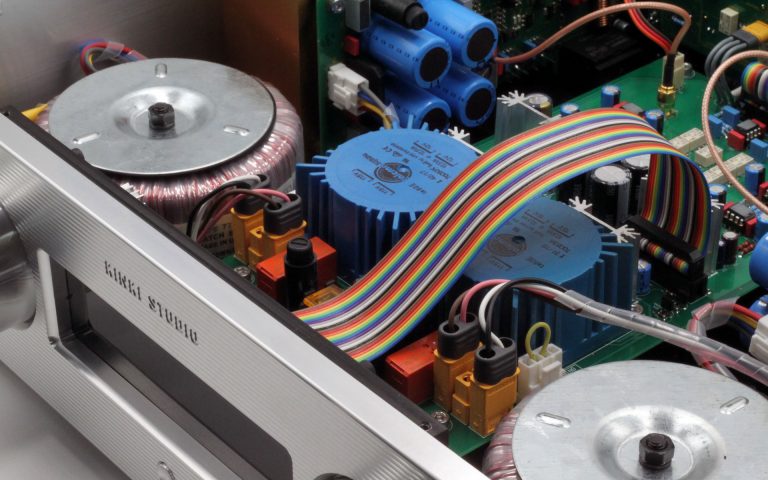

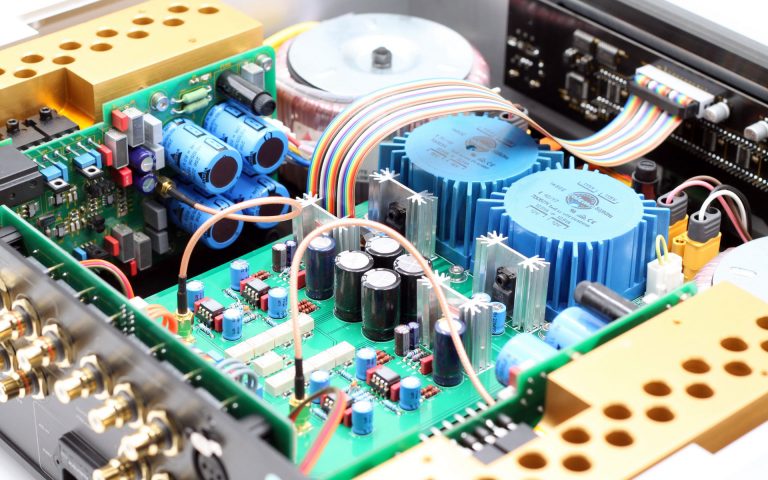

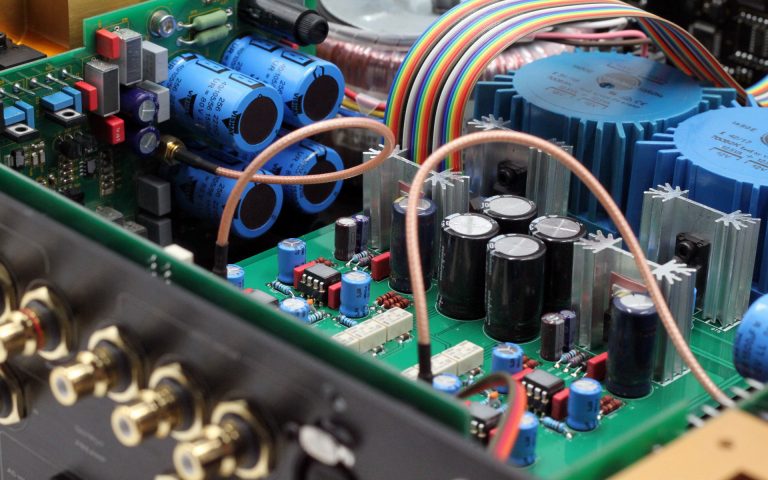

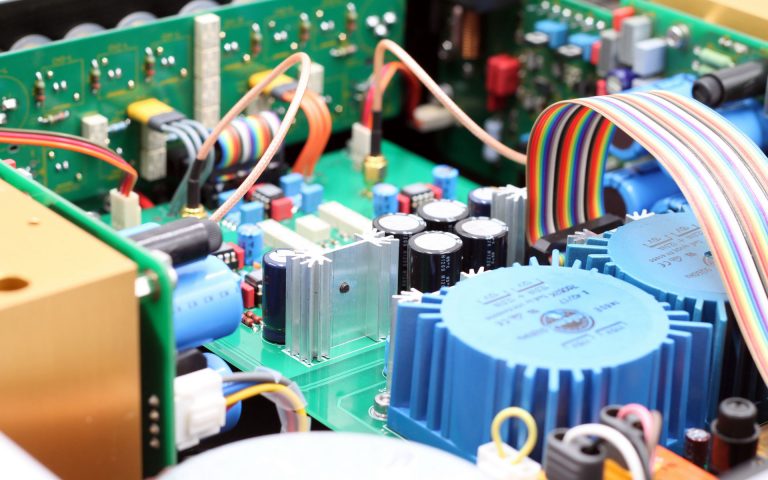

The EX-M1+ is designed based on the award-winning EX-M1. The good of the EX-M1 is well-preserved. Advanced microprocessor-controlled, relay-based R-2R steps attenuator, dual 300VA UK made AMPLIMO transformers, quasi monoblocks amplifier stage with EXICON MOSFET lateral, known for its ultra-fast and dynamic sonic response where the EX-M1+ benefited with.
PREAMP OUT, HT BYPASS

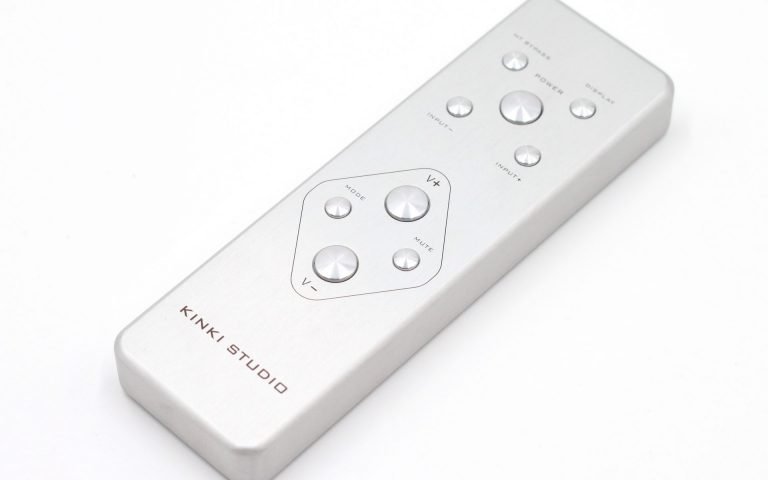

EX-M1+ is equipped with the most anticipated features – Preamp Output and HT Bypass. We did it differently though. The Preamp Output can be enabled/disabled by the completely redesigned Remote Control Unit. It allows you to use the EX-M1+ as a preamp only, or integrated amp where the preamp output can be connected to the subwoofer or to our monoblocks EX-B7 to biamp the loudspeakers.
The same goes to HT Bypass Input. A single press on the Remote Control Unit button enables the HT Bypass Input. The preamp stage is bypassed, EX-M1+ functions as a power amp.

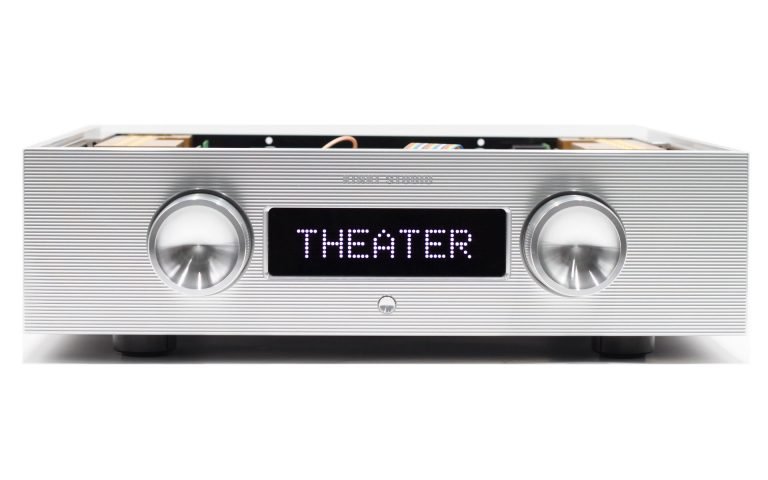

The display can now be dimmable, off completely, literally.

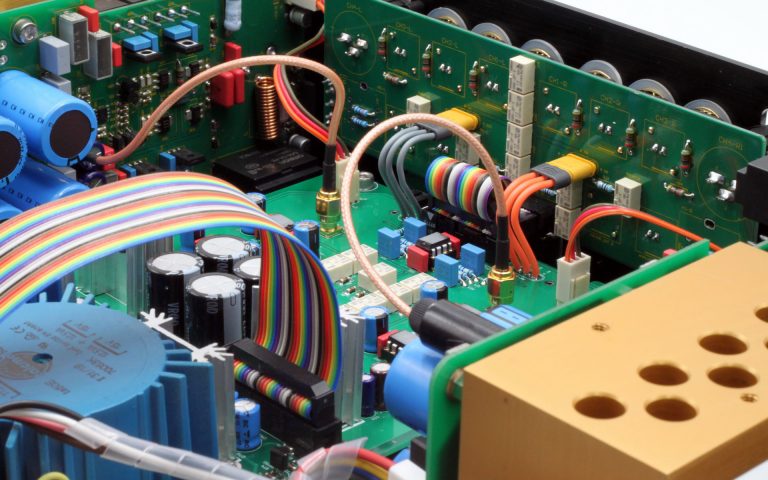

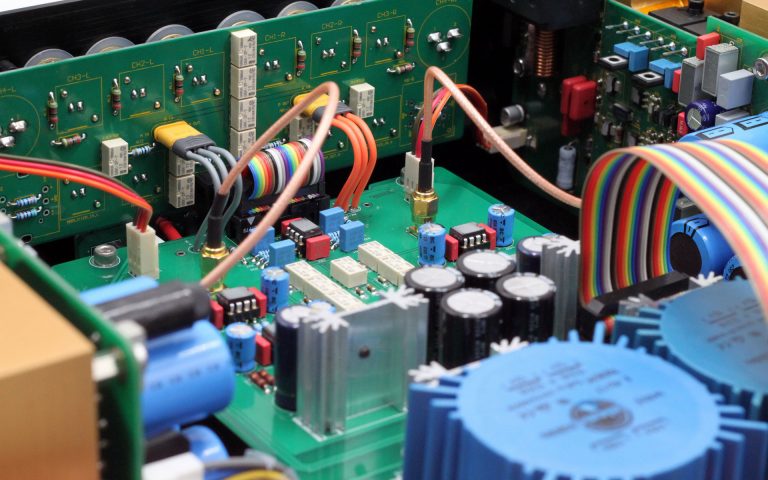

We have also improved the internal wiring with pure OCC copper and overly well-made gold plated connector for the line stage input signal and transformer primary stage.
Neutrality and musicality were the goals to achieve. Rich tonal quality, vivid sound imaging, details, high resolution and dynamic. The choice of the components, design, and tuning does just that.
It is the Kinki Studio gears‘ sound signature.
Frequency Response: 10-150kHz (±3dB)
THDN: 0.0232%; 0.006% (A-Weighted)
S/N Ratio: >103dB
Output Power: 215W (8Ω), Both channel driven
Damping Factor: 2000
Gain: Normal Gain 26 dB, Lowered Gain Switch 22 dB
Max Output Voltage: 55VAC
AC Power: 110/240VAC, 50/60Hz (Factory configure)
Input / Output
Input Sensitivity: 2.25Vrms – 3.6Vrms
Input Impedance: 50kΩ

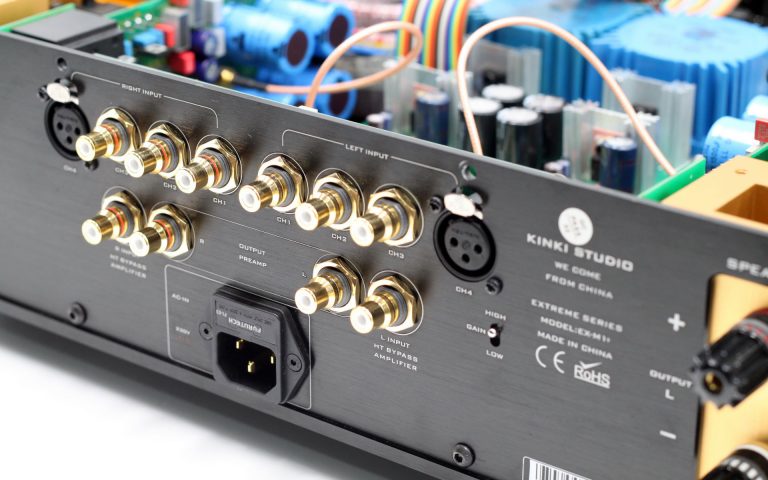

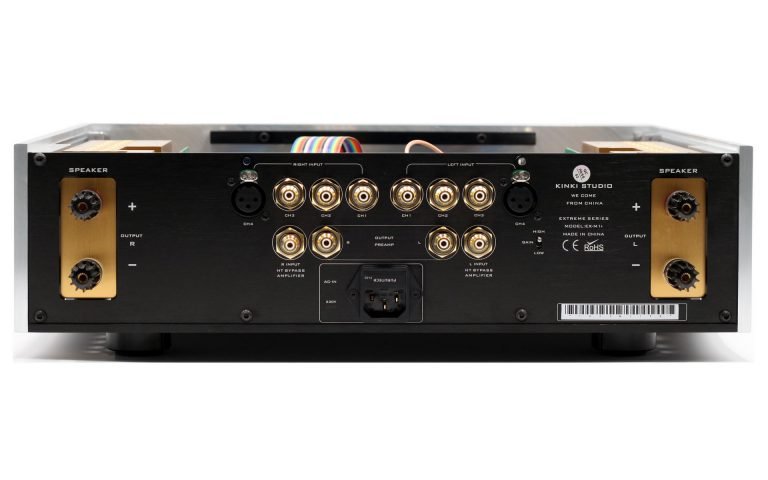

Input Connector: RCA x 3, XLR x 1, HT BYPASS x 1
Output: Speaker Binding Post 4mm L/R Channel
Output: Preamp Output x 1
Dimension & Weight
Dimension: 430W x 125H x 370D
